Kia isn’t just launching a new van, there’s also a multi-seater passenger car coming as well, so lets looks at the Kia PV5 Passenger dimensions.
Big cars aren’t new to Kia, the Kia EV9 is one hell of a tank, capable of moving six or seven passengers. The Kia PV5 Passenger size is very different to its SUV sibling, but there’s also a lot of similarities.
In this guide we’ll look at the overall dimensions of the PV5 passenger car, including the PV5 height, width and length.
If you’re interested in the Kia PV5 Cargo dimensions there’s a separate article on those, but as you will see, they are very similar.
The Kia PV5 Passenger overall dimensions are based the sizes of the concept van, but there are a few minor tweaks to make it into production. So buckle up as we dive into all the important sizes of the PV5 Passenger van.
These are unofficial PV5 dimensions not based on the manufacturer specifications from Kia, and will be subject to change when the production models finally arrive. That said, they’re pretty much the exact measurements.
These PV5 Passenger size and dimension guides are based on the published external dimensions of the concept vehicle as well as hand-measured dimensions of the launch vehicle.
Official Kia PV5 Passenger dimensions will be available soon, and we'll update this page as and when we get them.
The Kia PV5 Passenger will be available in two different sizes with a five seater at launch and a seven seater later on.
Both vans will be based on the same wheelbase length, with the PV5 Passenger coming with a wheelbase length of 3m (2,995mm) for all models.
The longer van, the 7-seat version of the PV5 passenger will instead get an increased overhang at the rear to make room for the extra occupants. That will make the long-wheelbase PV5 Passenger 200mm (20cm) longer than the five seat car.
The Kia PV5 Passenger length is 4.5m for the standard L1 van, and 4.7m for the L2 van. This is the overall length to the nearest metre.
Looking at the numbers a bit more closely, the Kia PV5 Passenger 5-seat L1 (short wheelbase) car has a total length of 4495mm, while the longer wheelbase Kia PV5 Passenger 7-seat L2 (long wheelbase) will be 4695mm.

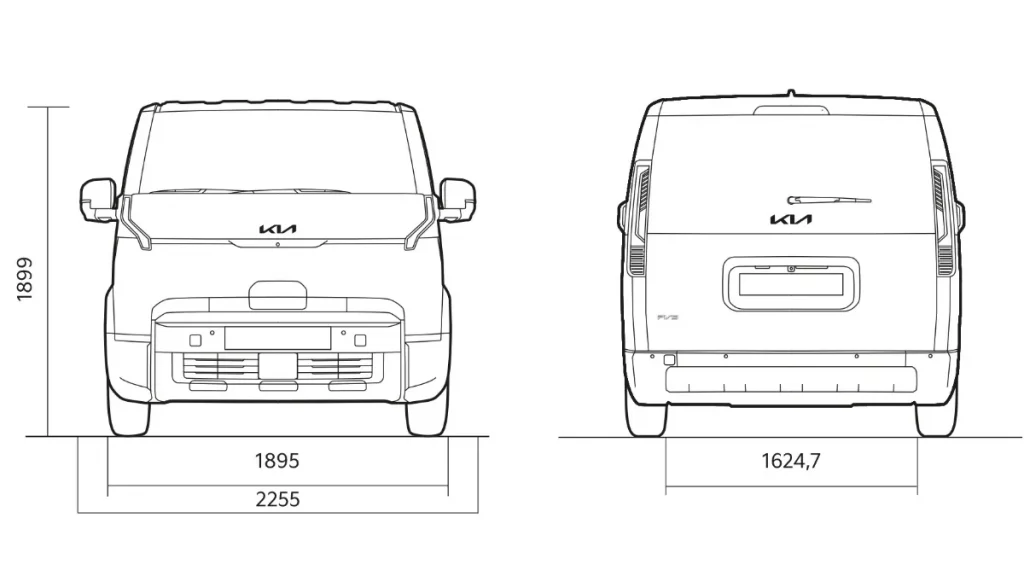

The Kia PV5 Passenger height is 1.9m, but there’s a slight variation you need to be aware of.
The passenger version of the PV5 measures 1,923mm with an antenna or 1,899mm without an antenna. That’s an important differentiation if you’re staring at a 1.9m height restriction. Unless you’re prepared to let some air out of the tyres, we’d be inclined to not risk it with or without an aerial.
The PV5 Passenger only comes in one width - which won’t be a surprise you anyone.
Just as important as overall length is the access to the car. The PV5 will also be made as a Wheelchair Accessible Vehicle, the Kia PV5 WAV.
The door opening sizes are the critical part of the Kia PV5 WAV dimensions, and also useful for PV5 Passenger buyers.
The PV5 Passenger rear door opening appears to be 840mm at its narrowest point, while higher up the gap increases to the same as the width between the wheelarches. That’s a rear door opening width of 1345mm at its widest point.
The PV5 Passenger side door opening is 775mm wide and 1340mm high. This is the door where access will be for the PV5 WAV.
The Kia PV5 Passenger Compact five seater van has an overall length of 4,500mm.
The PV5 Passenger external width is 1.9m, its overall external height is 1.92m.
It is based on a wheelbase of 3,000mm.
| Kia PV5 Passenger Compact dimensions | Dimensions (mm) |
|---|---|
| Length | 4500 |
| Width | 1895 |
| Height | 1,923mm (with antenna) |
| Wheelbase | 3000 |

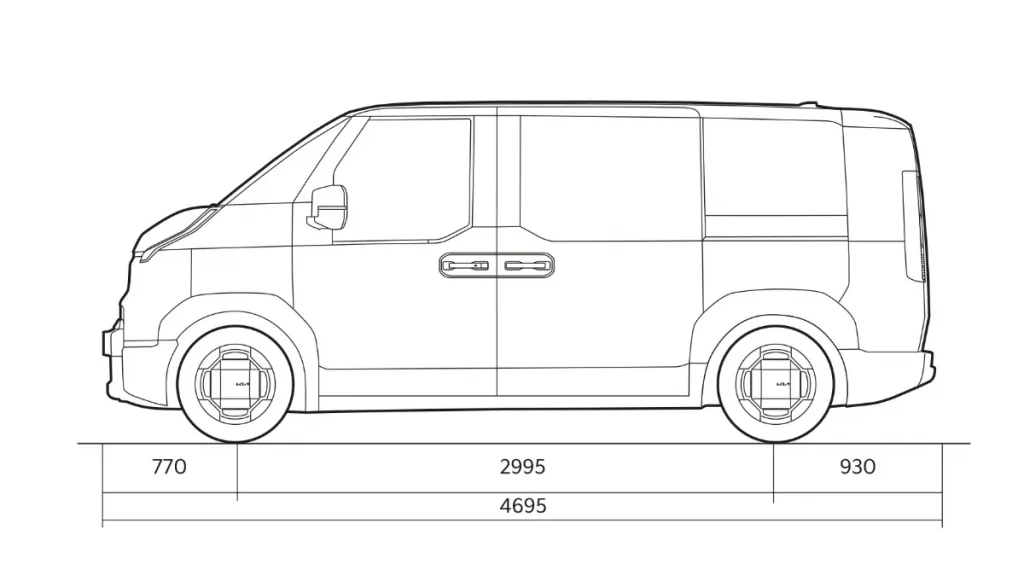

The Kia PV5 Passenger Long seven seater van has a modest increase in overall length over the five seater.
Despite not being an actual long-wheelbase model, as all the additional length comes from the rear overhang, it’s likely that it will still be known as the PV5 Passenger LWB or seven seater by many people. It gets an increased length of 4,695mm compared to the standard length PV5 passenger van, and has a width of 1,900mm and a height of 1,900mm.
Like the shorter version, it is also based on a wheelbase of 3,000mm.
| Kia PV5 Passenger Long dimensions | Dimensions (mm) |
|---|---|
| Length | 4695 |
| Width | 1895 |
| Height | 1900 |
| Wheelbase | 3000 |
The Kia PV5 Passenger five seat car measures 4.5m (length) x 1.9m (height) x 1.9m (width). The larger seven seater version is 4.7m long.
