It's the biggest van in the Maxus range and the Maxus Deliver 9 dimensions show that it's no shrinking violet when it comes to size and capacity.
There may only be two sizes of the Deliver 9, for what is a fleet orientated delivery van, but it's got plenty of useable space.

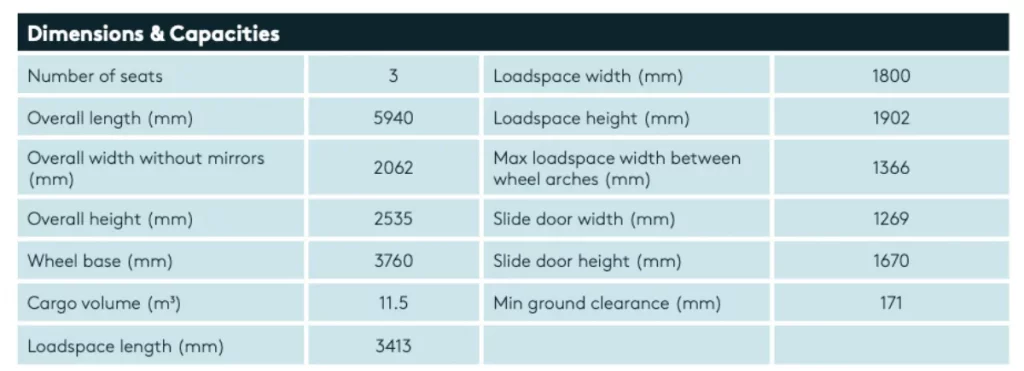

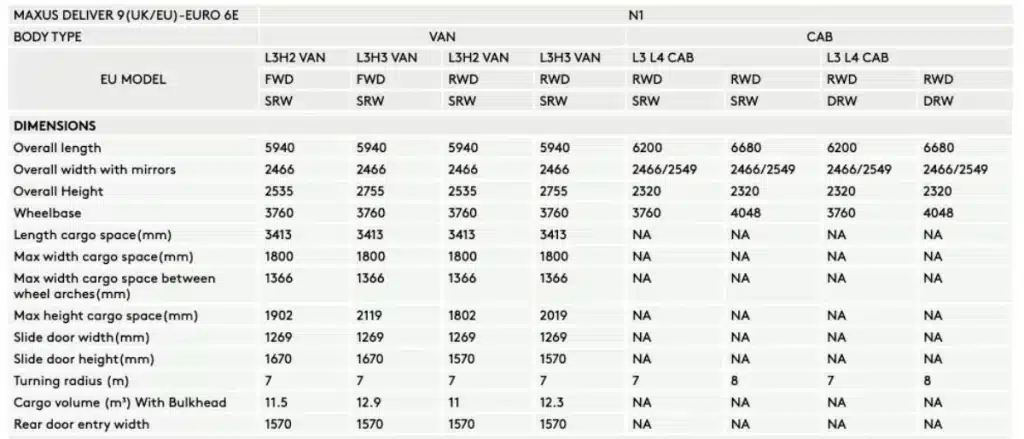

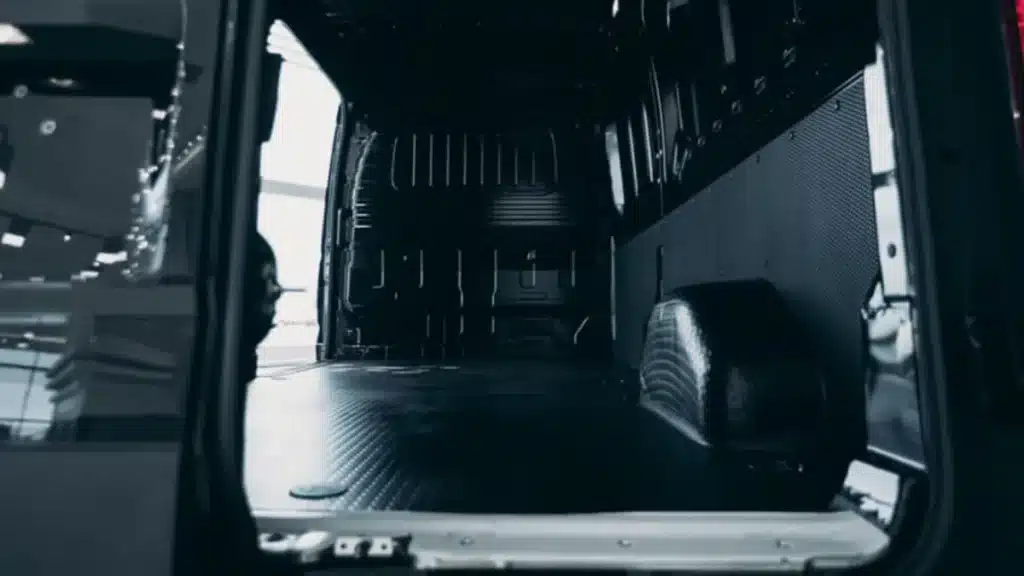

In this guide we'll look at all of the Maxus Deliver 9 dimensions including the overall height, length and width of this large van. We'll also cover the internal dimensions and the cargo space size, not to mentioned the loadspace volume.
| Model | MH | LH | MC CAB | LC CAB | N2 | LC CAB N2 |
|---|---|---|---|---|---|---|
| Length (mm) | 5546 | 5940 | 6200 | 6680 | 5940 | 6680 |
| Width (mm) | 2062 | 2062 | 2052 | 2052 | 2062 | 2052 |
| Height (mm) | 2525 | 2525 | 2290 | 2290 | 2525 | 2290 |
| Wheelbase (mm) | 3366 | 3760 | 3760 | 4048 | 3760 | 4048 |
| Cargo Volume (m3) | 9.7 | 11.0 | - | - | 11.0 | |
| Slide door width (mm) | 1269 | 1269 | - | - | 1269 | |
| CVW (kg) | 2300 | 2340 | 2700 | 2750 | 2660 | 2185 |
| Pay load (kg) | 1200 | 1160 | 1290 | 1290 | 1390 | 1865 |
