In the market for a new electric van that needs to earn its keep? Then you'll need to know the Farizon SV dimensions, which is just what this guide is going to tell you.

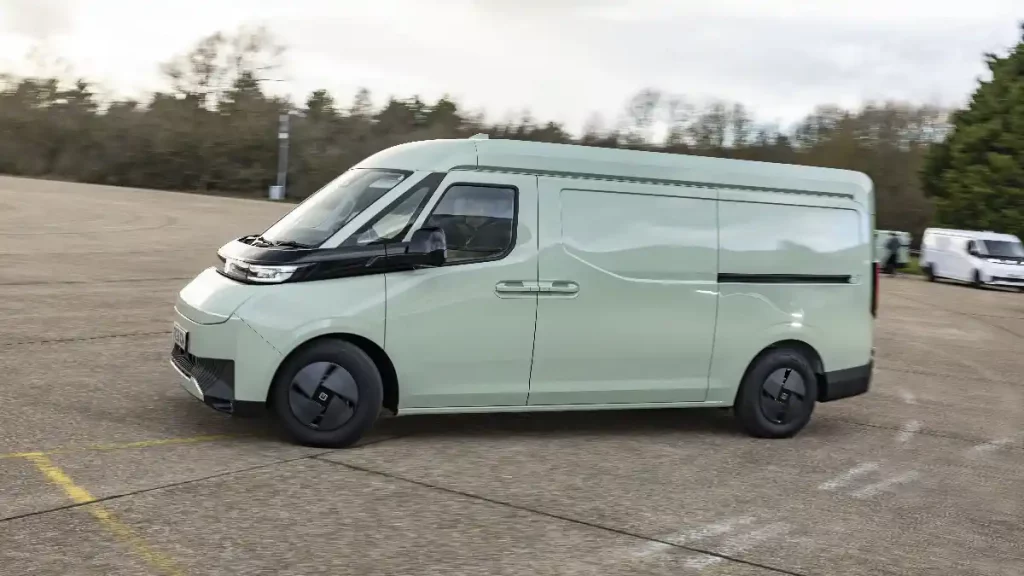

The Farizon SV is the medium-ish, not quite large van from Chinese manufacturer Geely, and it's one of several new entrants into the electric van segment. It's also part of a new wave of vans that straddle the traditional size brackets we've come to know for the van segment.
So while the Farizon SV measurements might stack up for some, the unusual sizing may also pose a few problems. This guide to the dimensions of the Farizon SV will help you weigh up if the Farizon SV height is a help or a hinderance, if the width is a winner and if the Farizon SV length is indeed long enough.
Farizon SV L1H1
Dimensions (mm)
Length
4,990
Width
1,980
Height
1,980
Front track
1,719
Rear track
1,722
Wheelbase
3,100
Front Overhang
830
Rear Overhang
1,060
Maximum Ground Clearance
150
Cargo Platform Height
550
Farizon SV L1H2
Dimensions (mm)
Length
4,990
Width
1,980
Height
2,180
Front track
1,719
Rear track
1,722
Wheelbase
3,100
Front Overhang
830
Rear Overhang
1,060
Maximum Ground Clearance
150
Cargo Platform Height
550
Farizon SV L2H2
Dimensions (mm)
Length
5,490
Width
1,980
Height
2,180
Front track
1,719
Rear track
1,722
Wheelbase
3,600
Front Overhang
830
Rear Overhang
1,060
Maximum Ground Clearance
150
Cargo Platform Height
550
Farizon SV L2H3
Dimensions (mm)
Length
5,490
Width
1,980
Height
2,500
Front track
1,719
Rear track
1,722
Wheelbase
3,600
Front Overhang
830
Rear Overhang
1,060
Maximum Ground Clearance
150
Cargo Platform Height
550
Farizon SV L3 H3
Dimensions (mm)
Length
5,995
Width
1,980
Height
2,500
Front track
1,719
Rear track
1,722
Wheelbase
3,850
Front Overhang
830
Rear Overhang
1,315
Maximum Ground Clearance
150
Cargo Platform Height
550
What is the Farizon SV load volume?
The Farizon SV has a cargo space volume ranging from 6.7m3 up to 13m3.
