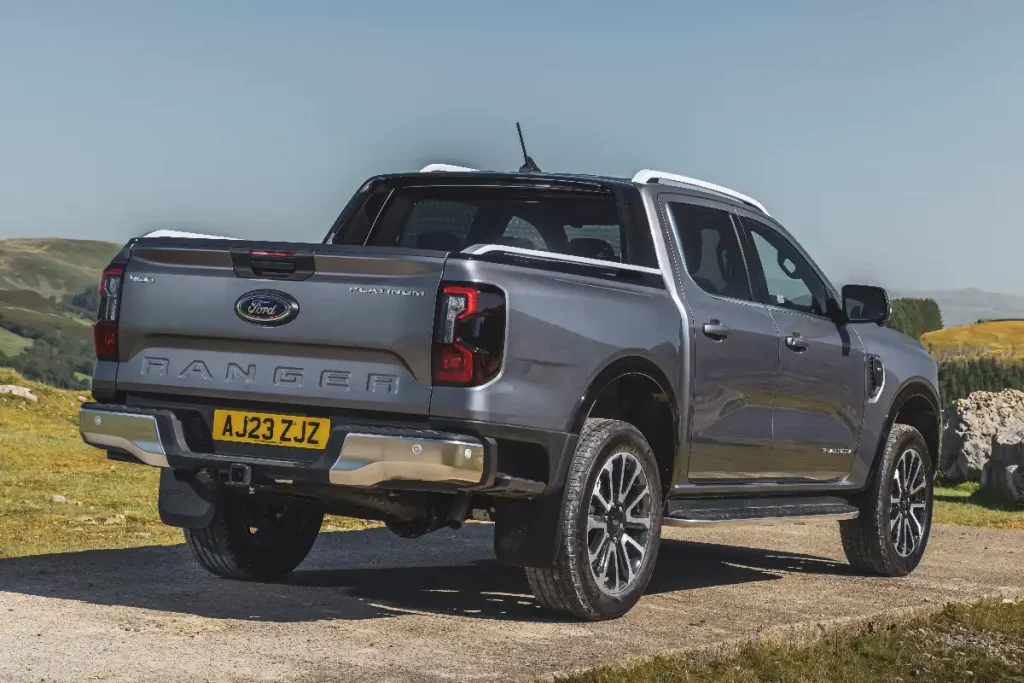

Ford Ranger Platinum dimensions

Thanks for checking out the guide for the Ford Ranger Platinum dimensions which includes the full size breakdown of the newest Ranger Platinum trim level as well as the length, height and width measurements.

In this guide we'll look at the official Ford technical data to give you the dimensions of the Ranger Platinum pick-up truck.

Let's get started...

Ford Ranger Platinum dimensions overview

This section provides a snapshot of the main external dimensions for the Ranger Platinum double cab pick-up.

These dimensions are intended to help when comparing with other vehicles, planning loading, parking clearance, or choosing a canopy.

The Platinum trim shares the same body as other Ranger double cab models, so many published specs apply across trim levels and will be the same as the Ford Ranger dimensions guide we have already published.

Ford Ranger Platinum length

The overall length of the Ranger Platinum in UK specification (double cab format) is 5,370 mm. This figure includes the full vehicle from front bumper to rear bumper.

The wheelbase (distance between front and rear axles) is 3,270 mm.

Ford Ranger Platinum width

The Ford Ranger Platinum width is:

• Width excluding mirrors: 2,015 mm
• Width including mirrors: 2,208 mm

Ford Ranger Platinum height

The unladen height of the Ranger Platinum (double cab) is 1,886 mm in UK specification.

This is the height measured to the top of the cab roof, without additional roof racks or other attachments.

Ford Ranger Platinum load bed dimensions

Below are the load bed (cargo box) dimensions that apply to the Ranger Platinum double cab.

Platinum dimensions detail:

• The load bed length of 1,638 mm refers to the flat floor dimension from the tailgate inner edge to the bulkhead (or bulkhead wall).
• The width between wheel arches (1,224 mm) is the narrowest internal width limited by the intrusion of the wheel arches.
• The maximum width (1,560 mm) is measured at the top edges or near the bed side walls, where the width is less restricted.
• The depth of 511 mm is the vertical distance from the bed floor up to the top of the cargo box side walls (excluding the bedliner).

Ford Ranger Platinum load bed area

To estimate the load bed floor area, we can multiply the floor length by the width, but that won't take into account the wheelarch intrusions.

• Floor length: 1,638 mm

In theory the area is equivalent to 2.55 m², however, after factoring in the wheelarches, the usable flat area is more realistically closer to 2m².

Ford Ranger Platinum ground clearance

Ford’s published technical documents for the Ranger show an unladen ground clearance of 229mm.
