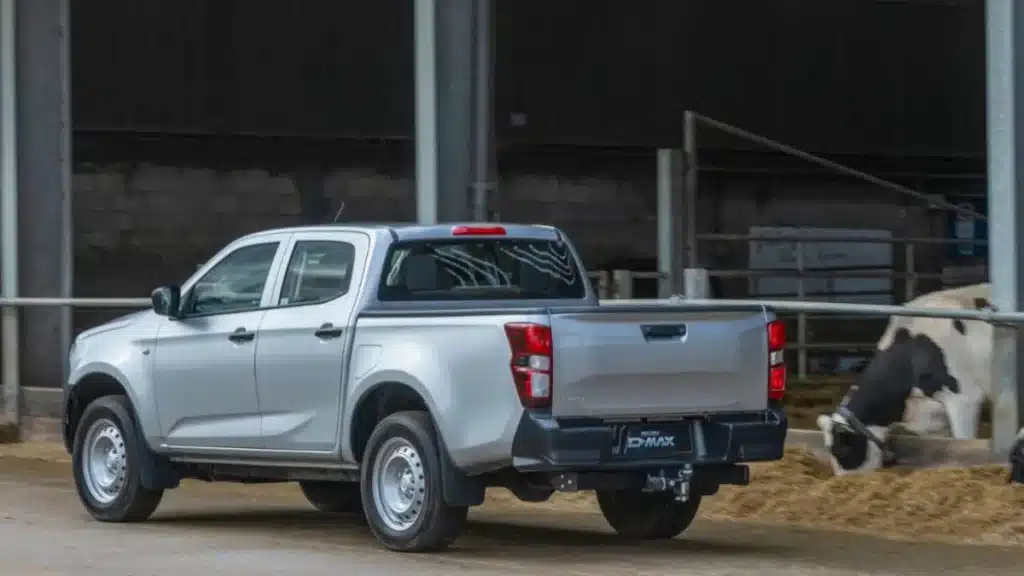

Welcome to our guide on the Isuzu D-Max dimensions, giving you a breakdown of the key measurements and sizes for the latest (2025) Isuzu D-Max in UK/EU specification.
Our D-Max size guide is here to help buyers, fleet managers, and existing owners understand how large the Isuzu pick-up is, with a breakdown of the D-Max length, width, height and load bed measurements.
So keep reading to find out the exact Isuzu D-Max dimensions to the millimetre, with data taken directly from official Isuzu UK spec data.
Isuzu is constantly updating and reviewing the specification of the D-Max, but the latest model is still essentially the same as the second generation pick-up first launched in 2012.
While these are the exact specifications for the 2025 model onwards (taken from the official Isuzu D-Max specfication and data sheets) the overall dimensions of the D-Max are roughly applicable to all models produced since 2012.
Let's take a quick overall look at the D-Max pick-up truck size:
The D-Max has an overal length of 5.3m, a width of 1.8m and also a height of 1.8m. Â
Now let's take a closer look at the full specifications and measurements of the D-Max. Starting with the length.
The official length of the 2025 D-Max is 5,280 mm for the double cab version. The single cab D-Max is marginally longer with a size of 5,305mm.
This overall lengths are the bumper to bumper size of the D-Max, and is applicable to all models, regardless of trim level.
| Isuzu D-Max | Dimensions (mm) |
|---|---|
| Overall length (Double Cab) | 5,280 |
| Overall length (Single Cab) | 5,305 |
All D-Max models have the same width, which makes explaining the size of the D-Max relatively easy.
The width (excluding mirrors) of the D-Max ranges from 1,810mm to 1,860mm, the differnce being the plastic body trim of the single cab and utility models, which make the truck fractionally wider. Double cab Isuzu D-Max pick-ups have a width of 1810mm.
With mirrors, the overall width increases to 2,100mm to 2,150mm.
| Isuzu D-Max | Dimensions (mm) |
|---|---|
| Width (excluding mirrors) Double Cab | 1,810 |
| Width (excluding mirrors) Single Cab | 1,860 |
| Width (with mirrors) Double Cab | 2,100 |
| Width (with mirrors) Single Cab | 2,150 |
The published height for the 2025 D-Max is approximately 1,790 mm, however, there are some variations due to the specification of each model - namely the tyres and wheel size.
| Isuzu D-Max | Dimensions (mm) |
|---|---|
| Overall height | 1,790 |
The load bed dimensions differ depending on the cab style (single, extended, double) but here are the need to know sizes of the load bed length for the main body types.
Overall width for the load bed is 1,530 mm.
| Isuzu D-Max | Load bed length (mm) | Load bed width (mm) |
|---|---|---|
| Single Cab | 2,315 | 1,530 |
| Extended Cab | 1,805 | 1,530 |
| Double Cab | 1,495 | 1,530 |
All models of the D-Max have a loadbed large enough to carry both a Euro pallet and a standard full-size pallet.
Load bed area is perhaps one of the less important figures you might need to know. The usuable area of a pick-up's load bed is hindered by the intrusion of the wheel arches, but it does give you an idea of the overall size.
Roughly speaking the Double Cab has a load floor area of just over 2m².
Although not technically a loadspace dimension, it's always useful to konw the ground clearance for a truck you own or might be considering.
The D-Max has a ground clearance of 240 mm, and a overall wading depth of 800mm.
The D-Max has an overal length of 5.3m, a width of 1.8m and also a height of 1.8m.
The Isuzu D-Max has a wading depth of 800mm and a ground clearance of 240mm.
The load bed in the D-Max double cab is approximately 1,495 mm long × 1,530 mm wide,
