Maxus eDeliver 7 dimensions

Maxus eDeliver 7 dimensions
August 16, 2025

Maxus burst on to the scene after their reinvention as an electric van manufacturer, bring a host of new models to the market, but are the Maxus eDeliver 7 dimensions what you need for a mid-sized van?

There's no doubting Maxus did its homework when it made the Maxus eDeliver 7 van. The medium size van is bang on the money compared to other models in the segment, and as a result, it's a practical and usably van.

In this guide, we'll look at the Maxus eDeliver 7's height, length and width. We'll also cover the eDeliver 7's internal cargo space size as well as the dimensions and volume of the loadspace.

Maxus eDeliver 7 L1H1 dimensions

Maxus eDeliver 7 L1H1 diagram
  • L1H1 (short/low):
    • Length: 4998mm
    • Width: 2030mm
    • Height: 1990mm
    • Wheelbase: 3000mm
    • Cargo Volume: 5.9m³

Maxus eDeliver 7 L2H1

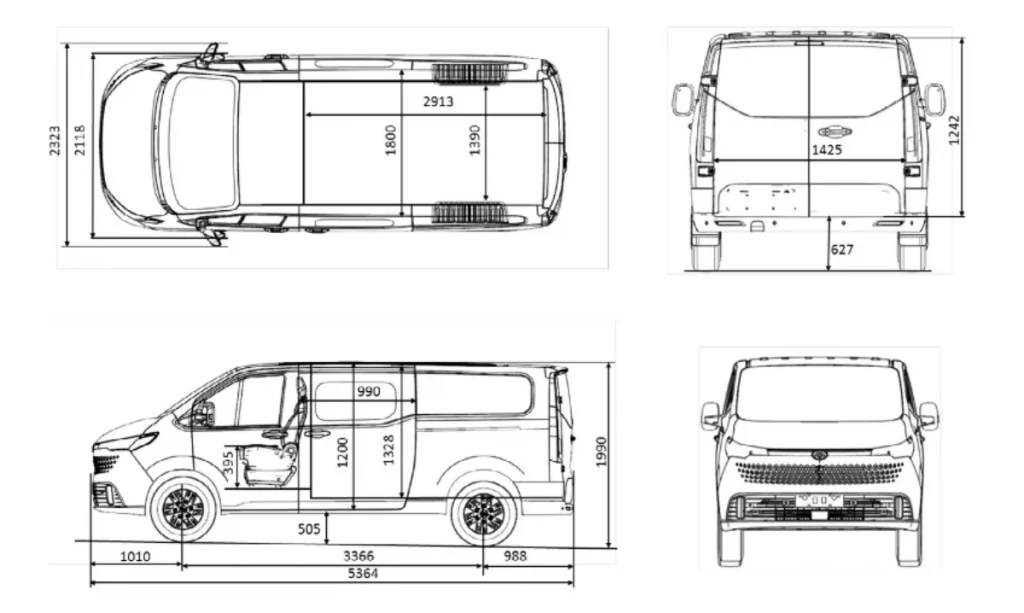

Maxus eDeliver 7 L2H1 diagram
  • L2H1 (long/low):
    • Length: 5364mm
    • Width: 2030mm
    • Height: 1990mm
    • Wheelbase: 3366mm
    • Cargo Volume: 6.7m³

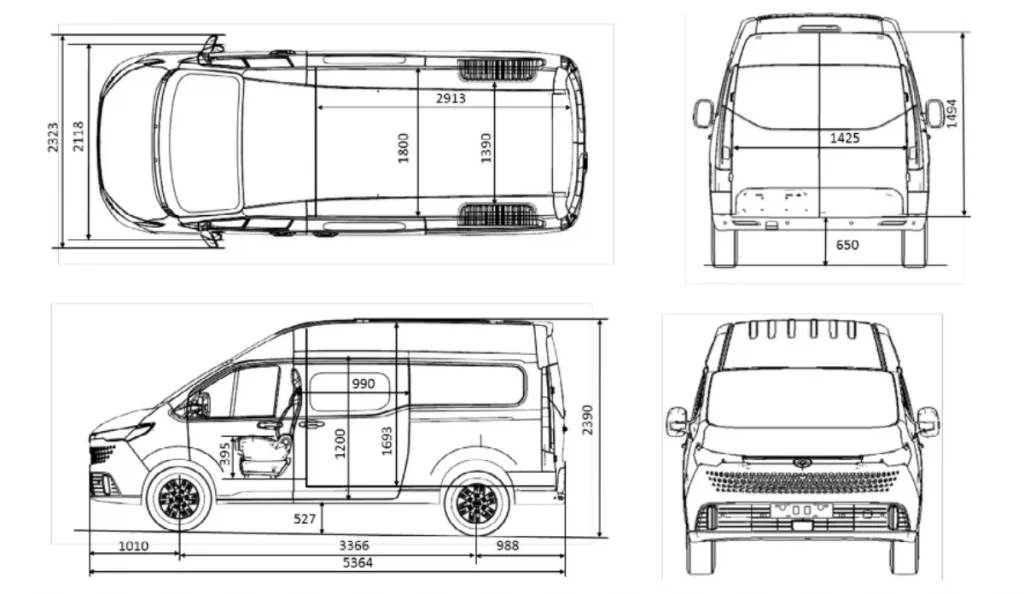

Maxus eDeliver 7 L2H2

  • L2H2 (long/high):
    • Length: 5364mm
    • Width: 2030mm
    • Height: 2390mm
    • Wheelbase: 3366mm
    • Cargo Volume: 8.7m³
Maxus eDeliver 7 dimensions
Maxus Deliver 7 modelLength (mm)Width (mm)Height (mm)
Deliver 7 - L1H1 Cargo Van (77kWh)499820301990
Deliver 7 - L1H1 Cargo Van (88kWh)499820301990
Deliver 7 - L2H1 Cargo Van (77kWh)536420301990
Deliver 7 - L2H1 Cargo Van (88kWh)536420301990
Deliver 7 - L2H2 Cargo Van (88kWh)536420302390
Written by: George Barrow
