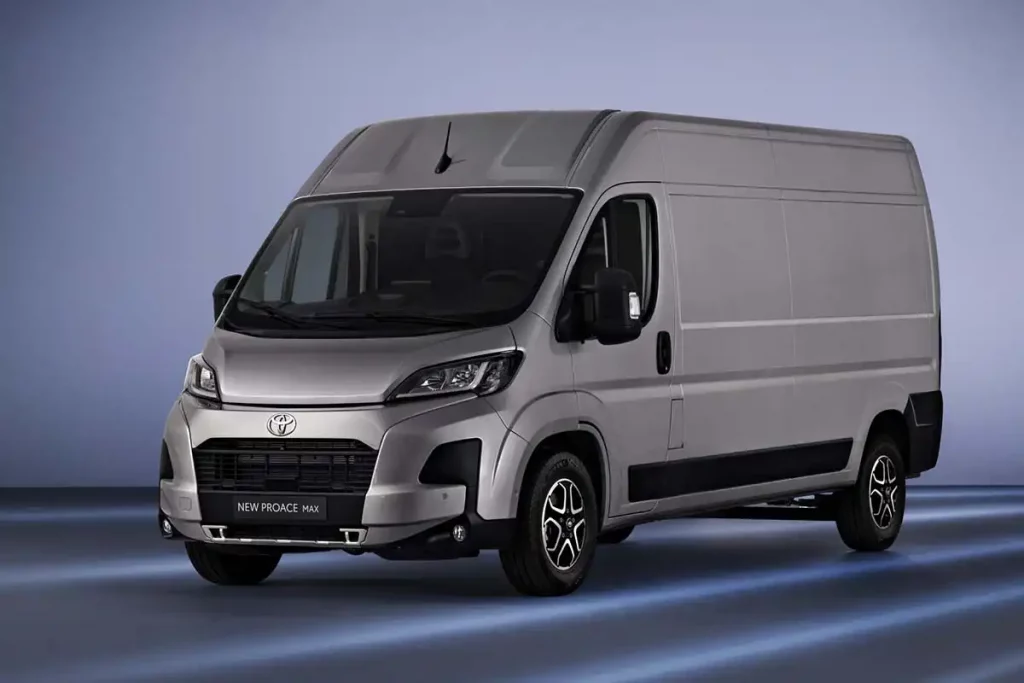

Toyota Proace Max dimensions

The Toyota Proace Max dimensions are amongst the largest in the big van sector. Whether you've come to find out the Proace Max height, length or width this comprehensive dimensions guide has all the answers you need.

You'll also get the Toyota Proace Max dimensions for the internal load space and the load volume. Finally, for each of the various sizes of the Toyota Proace Max, including the wheelbase, we'll also give you the dimensions for each of those. including its two most popular sizes, the Toyota Proace Max L2H2 dimensions and the Toyota Proace Max L3H2 dimensions.

If you need to know more about this large van then you can read the Toyota Proace Max review or there are seperate guides to the Toyota Proace Max payload capacity and the Toyota Proace Max towing capacity.

Dimensions of Toyota Proace Max van overview

The Toyota Proace Max is a new name to the large van sector having been introduced in 2024 when Toyota expanded its range to include a big van. Built by Stellantis, it is based on their range of vans so shares the same sizes as the Citroen Relay dimensions, Fiat Ducato dimensions, Peugeot Boxer dimensions and Vauxhall Movano dimensions.

The Proace Max is the largest vehicle in the Toyota Professional range and comes in four configurations. There are two wheelbase lengths, three overall lengths and two height options. In it's largest size the Toyota Proace Max has a 17m³ cargo volume capacity.

So... let's break down the Toyota Proace Max size across the range. There are a total of three van lengths (medium, large and extra-large) and two roof heights (standard and high).

Picture below are the sizes of the vans with the smallest L1H1 (in red) not available in the Proace Max line-up.

full dimensions toyota proace max with L1, L2, L3 and L4 van shown overlaid of each other as well as H1, H2 and H3 size

What is the Toyota Proace Max height?

Toyota Proace Max has a height of up to 2.76m, measured from the ground to the highest point on the roof. This is for the H3 sized version. A total of two van roof heights are available.

  • Toyota Proace Max H2 exterior height = 2522mm or 2.52m
  • Toyota Proace Max H3 exterior height = 2760mm or 2.76m

What is the Toyota Proace Max internal height?

The Proace Max interior height varies depending on the overall roof height of the van but has a range from 1932mm to 2172mm.

  • Toyota Proace Max H2 internal height = 1932mm or 1.93m
  • Toyota Proace Max H3 internal height = 2172mm or 2.17m

What is the Toyota Proace Max length?

The overall length of the Toyota Proace Max ranges from 5413mm to 6363mm. There are three different lengths based on two wheelbases.

  • Toyota Proace Max L2 exterior length = 5413mm or 5.41m
  • Toyota Proace Max L3 exterior length = 5998mm or 5.99m
  • Toyota Proace Max L4 exterior length = 6363mm or 6.36m

What is the Toyota Proace Max internal length?

On the inside, the maximum internal length of a Toyota Proace Max van is 4070mm or 4.07m. The total internal loadspace lengths ranges from 3210mm to 4070mm.

  • Toyota Proace Max L2 interior length = 3210mm or 3.21m
  • Toyota Proace Max L3 interior length = 3705mm or 3.7m
  • Toyota Proace Max L4 interior length = 4070mm or 4.07mm

What is the Toyota Proace Max width?

The overall width of the Toyota Proace Max is 2050mm which is the measurement from the widest part of the body and excludes the door mirrors.

Internal width

The internal width of the Toyota Proace Max is 1870mm at it's widest part.

Width between the wheelarches

The width between the wheelarches of the Toyota Proace Max van is 1422mm.

What are the Toyota Proace Max MWB dimensions?

The medium-wheelbase Toyota Proace Max is the shortest size available in the range and is known as an L2 with a length of 5413mm or 5.41m.

The medium wheelbase Proace Max van is also available in just one roof height, H2.

Toyota Proace Max L2H2 exterior dimensions

The Proace Max L2H2 is based on the medium-wheelbase model with a length of 5.41m and has a maximum height of 2.52m.

Toyota Proace Max L2H2 exterior dimensions: 5413mm L x 2050mm W x 2522mm H

Toyota Proace Max L2H2Length (mm)
Overall length5413
Overall height2522
Overall width2050
Wheelbase3450
Loading Height560
Rear Door Width1562
Rear Door Height1790
Load Length3120
Load Width Max1870
Load Height1932
Load Volume 11.5m3

Toyota Proace Max L2H2 internal dimensions

The Proace Max L2H2 internal height is 1.93m, enough for an adult to stand in the rear, making the H2 van suitable for a camper van conversion van.

Toyota Proace Max L2H2 interior dimensions: 3120mm L x 1870mm W x 1932mm H

What are the Toyota Proace Max LWB long wheel base dimensions?

Toyota Proace Max LWB van or L3 size has a longer wheelbase which means that there's an additional 585mm in the chassis which increases the overall length of the van to 5.99m

The LWB L3 Proace Max van is also available in two roof heights with a standard H2 height or the taller H3 option.

Toyota Proace Max L3H2 exterior dimensions

This is the everyman van in the range, likely to be the most common version. The Proace Max L3H2 dimensions make it a really flexible van for any job, whether you're a builder, courier or looking for a caravan conversion.

Its overall length of 5.99m means that there's additional space in the rear and the 2.52m height gives it plenty of head room and volume.

Toyota Proace Max L3H2 exterior dimensions: 5998mm L x 2050mm W x 2522mm H

Toyota Proace Max L3H2Length (mm)
Overall length5998
Overall height2524
Overall width2050
Wheelbase4035
Loading Height560
Rear Door Width1562
Rear Door Height1790
Load Length3705
Load Width Max1870
Load Height1932
Load Volume13m3

Toyota Proace Max L3H2 internal dimensions

As an L3 van, the Toyota Proace Max gets more load length in its cargo space - an extra 585mm over the L2 variants to be precise.

The added length comes from a longer wheelbase. Unsurprisingly, the Proace Max L3H2 internal dimensions increase by exactly the same amount as the wheelbase, an additional 585mm. The extra 0.58m in length also increases the total cargo area giving the van a maximum length of 3.7m.

Toyota Proace Max L3H2 interior dimensions: 3705mm L x 1870mm W x 1932mm H

Toyota Proace Max L3H3 exterior dimensions

The Proace Max L3H3 is a high roof, long-wheelbase van - it's the large middle van, if you want to be untechnical about it. IThe L3H3 has an overall length of nearly 6m and 2.7m height.

Toyota Proace Max L3H3 exterior dimensions: 5998mm L x 2050mm W x 2760mm H

Toyota Proace Max L3H3Length (mm)
Overall length5998
Overall height2760
Overall width2050
Wheelbase4035
Loading Height560
Rear Door Width1562
Rear Door Height1790
Load Length3705
Load Width Max1870
Load Height2172
Load Volume15m3

Toyota Proace Max L3H3 internal dimensions

The internal dimensions of the Proace Max L3H3 allow you to move up to 3.7m in total length in the cargo space, while the H3 height of 2.17m leaves ample space for tall people.

Toyota Proace Max L3H3 interior dimensions: 3705mm L x 1870mm W x 2172mm H

What are the Toyota Proace Max ELWB dimensions?

Extra-long wheelbase or ELWV is an L4 version of the Toyota Proace Max. The increase, however, doesn't come from an extra-long wheelbase, but instead is made by increasing the rear overhang of the van - that's the section behind the rear axle of the van.

By adding 365mm more to the overhang the Proace Max now has a total length of 6.36m. There's also the option of two different roof heights with both H2 and H3 roofs.

Toyota Proace Max L4H2 exterior dimensions

Adding 365mm for the Proace Max L4 van means the total length increases to 6.36m. That's a monster of a van in comparison to the other versions and even some competitors like the Ford Transit dimensions.

Toyota Proace Max L4H2 exterior dimensions: 6363mm L x 2050mm W x 2522mm H

Toyota Proace Max L4H2Length (mm)
Overall length6363
Overall height2522
Overall width2050
Wheelbase4035
Loading Height560
Rear Door Width1562
Rear Door Height1790
Load Length4070
Load Width Max1870
Load Height1932
Load Volume15m3

Toyota Proace Max L4H2 internal dimensions

The lengthiest of all Proace Max models can swallow up lengths of up to 4070mm thanks to the additional space which comes from the increased rear overhang.

Toyota Proace Max L4H2 interior dimensions: 4070mm L x 1870mm W x 1932mm H

Toyota Proace Max L4H3 exterior dimensions

The Toyota Proace Max L4H3 is the biggest van in the range with the highest roof height and longest body length. Measuring up at more than 6.3m in length and at a height of 2.76m it's also one of the biggest vans on sale.

Toyota Proace Max L4H3 exterior dimensions: 6363mm L x 2050mm W x 2760mm H

Toyota Proace Max L4H3Length (mm)
Overall length6363
Overall height2760
Overall width2050
Wheelbase4035
Loading Height560
Rear Door Width1562
Rear Door Height1790
Load Length4070
Load Width Max1870
Load Height2172
Load Volume15m3

Toyota Proace Max L4H3 internal dimensions

An enormous 4m load length and 2.1m of internal height gives the Toyota Proace Max L4H3 the largest internal dimensions and load capacity of any conventional 3.5-tonne van.

Toyota Proace Max L4H3 interior dimensions: 4070mm L x 1870mm W x 2172mm H

What is the Toyota Proace Max load volume?

The Toyota Proace Max has a load volume of 10m3 up to 17m3. The largest Proace Max is the L4H3 model with a capacity for 17m3 cargo volume.

The smaller L4H2 and L3H3 vans both share a 15m3 cargo space load volume, while the lower roof of the Proace Max L3H2 van drops the volume down to 13m3.

The smallest Toyota Proace Max for load volume is the L2H2 with a capacity of 11.5m3.

Below is an example of the sizes of the vans available with an L2H1 van there for reference.

Loading sill height

The Proace Max has a loading height of between 535mm and 565mm, depending on the size of the van and its payload, both of which alter the overall weight of the vehicle. This determines how much the springs are compressed and how high the loading height of the van will be.

Updated: May 15, 2024
Written by: thevanreviewer
